توضیحات
Design, fabrication and characterisation of a locally made CO 2 gas laser
147 صفحه متن انگلیسی به صورت pdf و 124 صفحه ترجمه شده متن فارسی به صورت word و pdf
نمونه متن فارسی:
چکیده:
کارایی یک لیزر به فشار جزئی هر جزء از مخلوط گازها، یعنی ، و He و همچنین جنبه های طراحی بستگی دارد. بهینه سازی راندمان یا کارایی لیزر با طراحی مناسب و انتخاب مناسب مخلوط گاز مورد توجه است. به طور کلی، مشخص شده است که حداکثر بهره به دست آمده در لیزر موج پیوسته گاز معمولی، با تفکیک در جریانهای تخلیه بالا محدود میشود. این گروه از اصول وارونگی جمعیت و شرایط آستانه برای القای عمل لیزر پیروی می کند، همانطور که لیزرشدن یا لیزینگ نشان می دهد.که مربوط به این اصول انرژی مولکول های گاز است. یک سیستم لیزر گاز بر اساس جریان محوری آهسته، موج پیوسته , برانگیختهگی طولی ایجاد و ساختار بندی شده . این سیستم از یک منبع تغذیه پایدار و یک کاواک تشدید تشکیل شده است که از یک پنجره انتقال یا یک صفحه بروستر برای جفت کردن پرتو لیزر استفاده می کند. دو پیکربندی از نظر تشدید کاواک آزمایش شد. در یک پیکربندی، از یک آینه مقعر طلایی با شعاع انحنای 5 متر و یک آینه مسطح با روکش مس استفاده شد. یک صفحه بروستر بین آینه تخت و یکی از پنجره های خروجی ZnSe قرار داده شد. این اجازه می دهد تا خروجی لیزر خارج از محور لیزر مشاهده شود. در پیکربندی دیگر، آینه مقعر با روکش طلا با شعاع انحنای 5 متر همراه با یک جفت خروجی مسطح ZnSe با بازتاب 90 درصد استفاده شد. در دو پیکربندی، کاواک لیزر با گازهای CO2، N2 و He به نسبت 1: 1: 8 پر شد. نتایج بهدستآمده در طول مشخصهسازی نشان میدهد که برای عملکرد بهینه، پیکربندی که از یک کوپلر(جفت ساز) خروجی 90 درصد استفاده میکند، مقادیر بالاتری از توان تولید میکند. این پیکربندی حداکثر توان خروجی 10.6 وات را ارائه می دهد. راندمان یا نرخ بهره وری دوشاخه دیواری سیستم مورد استفاده با این پیکربندی به طور متوسط 9.5٪ است. برای تحریک سیستم یک منبع تغذیه حالت سوئیچ طراحی و ساخته شد. منبع تغذیه می تواند حداکثر kv 14 در هنگام تخلیه و جریان mA 4 در هنگام بارگیری با 900 تامین کند. همراه با لیزر دی اکسید کربن و منبع تغذیه حالت سوئیچ شده، یک آشکارساز مادون قرمز ساخته شده است. این آشکارساز از یک فتودیود(دیود نوری) ساده SFH309 به عنوان آشکارساز در مدار خود استفاده می کند.
هدف بلندمدت این مطالعه ایجاد یک موسسه تحقیقاتی لیزر است که در آن لیزر و تحقیقات مرتبط با لیزر ممکن است انجام شود. این امر کسب مهارت های فنی مربوطه را تشویق می کند، مهارت های مدرن و ابتکار محلی را تقویت می کند. صنایع زیمبابوه منتفع خواهند شد زیرا با استفاده از این فناوری می توان بیشتر محصولات آنها را از نظر کیفیت بهبود بخشید.
نمونه متن انگلیسی:

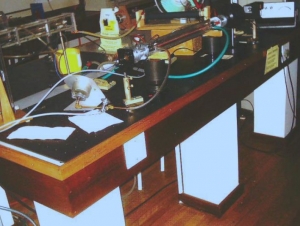

The efficiency of a CO2 laser depends on the partial pressure of each component of a mixture of gases, namely CO2, N2 and He, as well as the design aspects. It is of interest to optimise the efficiency of the CO2 laser by proper design and suitable choice of gas mixture. In general, it is found that, the maximum gain attained in a typical flowing gas continuous wave CO2 laser, is limited by dissociation at high discharge currents. This study establishes optimised conditions and parameters in a molecular CO2 laser. The ensemble obeys the principles of population inversion and threshold conditions for the induction of laser action as evidenced by lasing. Relevant to these principles are the energetics of CO2 gas molecules. A longitudinally excited, continuous wave, slow axial flow CO2 gas laser system was developed and characterised. The system consists of a stable power supply unit and a resonant cavity which either uses a transmission window or a Brewster plate to couple out the laser beam. Two configurations of the resonant cavity were tried. In one configuration, a gold concave mirror with radius of curvature of 5 m and a copper coated flat mirror were used. A Brewster plate was placed between the flat mirror and one of the ZnSe output windows. This allowed the laser output to be observed off the laser axis. In the other configuration, the gold coated concave mirror of radius of curvature 5 m was used together with a ZnSe flat output coupler of 90 % reflectivity. In the two configurations, the laser cavity was filled with CO2, N2 and He gases in the proportions 1: 1: 8. The results obtained during characterisation show that for optimum performance, the configuration that uses a 90 % output coupler yields higher values of power. This configuration gave a maximum power output of 10.6 W. The wall plug efficiency of the system used with this configuration is, on average, 9.5 %. For the excitation of the system, a switched mode power supply was designed and constructed. The power supply could provide a maximum of 14 kV when unloaded and a current of 4 mA when loaded with 900 k. Constructed together with the carbon dioxide laser and the switched mode power supply is an infrared detector. This uses a simple photodiode SFH309 as the detector in its circuit.
The long-term purpose of the study is to establish a laser research institute where laser and laser-related research may be undertaken. This will encourage acquisition of relevant technological skills, enhance modern skills and local initiative. Zimbabwean industries will benefit as most of their products can be improved in terms of quality when this technology is taken advantage of.
منابع:
Barmashenko B. D. and Rosenwaks S. 1996. Analysis of the optical extraction efficiency
in gas-flow lasers with different types of resonator, Applied Optics, Vol. 35,
- 36, pg. 7091-7101.
Beaulieu A. J. 1970. Transversely excited atmospheric pressure CO2 lasers, Applied
Physics Letters, Vol. 16(12), pg. 504 – 505.
Bennet W. R. Jr. 1965. Inversion mechanisms in Gas Lasers, Applied Optics,
Supplementary 2 Chemical lasers, , pg. 3-33.
Bertolotti M., Hilger A.1973. Masers and Lasers; A Historical approach, 2nd edition.
- pg 25 – 45
Bilida W. D., Seguin H. J. J. and Capjack C. E. 1995. Resonant cavity excitation system
for radial array slab CO2 lasers, Journal of Applied Physics, American Institute of
- pg. 4319 – 4321.
Birman P.1967. Kepco Power supply handbook, Kepco Inc., Flushing. U.S.A.
Bishop O. 1999. Electronics: Circuits and Systems, Newnes, Great Britain. pg 28- 485.
Brown S. C. 1966. Introduction to electrical discharges in gases, John Wiley and sons,
New York. pg. 64- 98.
Byron S. R., Apter H. 1992. Model of gas composition and plasma properties in sealed
cw CO2 lasers, Journal of Applied Physics, pp. 1976 – 1991.
Cake Aaron, http://www.aaroncake.net/circuits/supply4.htm
Carlos Calle, 2003,
